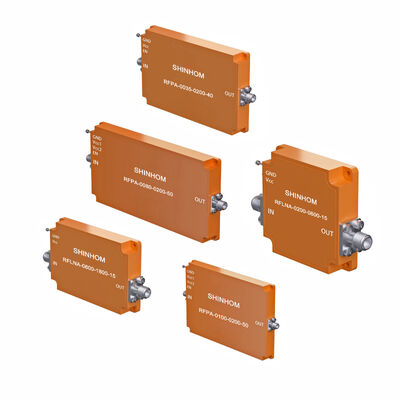

Name: High-Power 120W Microwave Power Amplifier with 0.5–40 GHz Frequency Range and GaN Semiconductor Technology
Brand: Shaanxi Shinhom Enterprise Co.,Ltd
SKU: Endverstärker
Availability: InStock

Eigenschaften Galerie Produkt-Beschreibung Wir Reden Jetzt.

Eigenschaften

Technische Daten

1: Funkkommunikationsgerät

2: Test- und Maßausrüstung

3: Navigation und Luft- und Raumfahrt

4: Kommerzielle Radargeräte

5: Allzweck-Senderverstärkung

Betriebsfrequenz:: 0,5–40 GHz

Ausgangsleistung:: 5 W – 120 W

Gewinn:: 20–60 dB

Rauschzahl:: 0,8–2,5 dB

Betriebstemperatur:: -40°C bis +85°C

Lagertemperatur:: -55°C bis +125°C

VSWR (Stehwellenverhältnis):: ≤1,5:1 (typisch)

Hervorheben:

0.5–40 GHz Microwave Power Amplifier

120W RF Amplifier

GaN Semiconductor Microwave Amplifier

Grundinformation

Herkunftsort: China

Markenname: SHINHOM

Zertifizierung: RoHS/ISO/UL/CE/IATF16949/CNAS

Modellnummer: Endverstärker

Dokumentieren: Power-Amplifier-Low-Noise.pdf

Zahlung und Versand AGB

Lieferzeit: 2~8 Wochen

Zahlungsbedingungen: L/C, T/T

Galerie

High-Power 120W Microwave Power Amplifier with 0.5–40 GHz Frequency Range and GaN Semiconductor Technology

Produkt-Beschreibung

Microwave Power Amplifiers

Our microwave power amplifiers are engineered for high-performance RF and millimeter-wave applications, delivering superior signal integrity and robust reliability across frequencies from MHz up to 40 GHz.

Product Overview

Designed for wireless communications, radar systems, aerospace applications, and precision test instruments, these amplifiers are available in broadband, high-power, and low-noise configurations. They combine compact design, high efficiency, and thermal stability to meet modern RF system demands.

Key Features

Wide Frequency Coverage: Supports low to high GHz bands for versatile applications
High Output & Gain: Ensures strong amplification with stable gain across frequency range
Low Noise Option: Ultra-low noise figures for sensitive receiver systems
High Efficiency & Reliability: Optimized design for minimal power consumption and long-term stability
Compact & Robust Design: Space-saving form factor with durable construction for harsh environments
Single Voltage Operation: Simplifies integration into various systems

Applications

Wireless Communication Equipment
Aerospace & Navigation Systems
Commercial & Military Radar
Test & Measurement Instruments
General-Purpose Transmitters

Product Series

Broadband Power Amplifiers

Designed for reliable performance across broad frequency ranges, these amplifiers deliver high output and consistent gain. Suitable for radar, base stations, and other communication applications requiring stable amplification and efficiency.

Specification	Details
Frequency Range	1.5 MHz - 26.5 GHz
Output Power	39-50 dBm
Gain	20-60 dB
Power Supply	220 V AC

High-Power Amplifiers (HPA)

Engineered for high-demand applications, these amplifiers provide output up to 120W with excellent linearity and efficiency. Ideal for mission-critical systems in telecom, aerospace, and radar.

Specification	Details
Frequency Coverage	DC - 40 GHz
Output Power	Up to 120 W
Gain	40-44 dB
Power Supply	Single Voltage Supply Operation

Low-Noise Amplifiers (LNA)

Compact LNAs with minimal noise figures and high gain, designed for sensitive RF and microwave receiver systems. Covering multioctave bands, they ensure signal clarity in critical applications.

Specification	Details
Frequency Range	200 MHz - 18 GHz
Noise Figure	Ultra-low
Gain	High & Stable
Integration	Connectorized Modules for Easy Integration

Why Choose Our Microwave Power Amplifiers

Advanced Technology: Cutting-edge design ensures superior performance
Reliable Manufacturing: Rigorous quality control from raw materials to finished products
Custom Solutions: Tailored designs available to meet specific application needs
Global Support: Comprehensive technical assistance for seamless deployment
