| Strombereich: | 0.5-6000A | Ausgang: | 0.333VAC oder 0-5A |
|---|---|---|---|
| Genauigkeit: | 0,2、 0,5、 1,0 | Arbeitsfrequenz: | 50Hz zu 2.5KHz |
| Durchschlagsfestigkeit: | 5.0KV/1mA/1min | Anpassbare: | Ja |
| Markieren: | Art Stromwandler des aufgeteilten Kernes,Strom-Sensor des aufgeteilten Kernes |
||

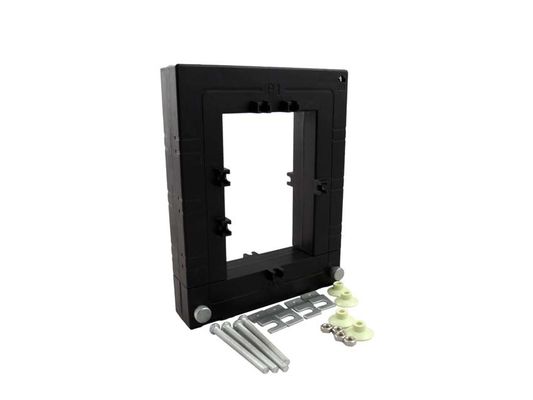

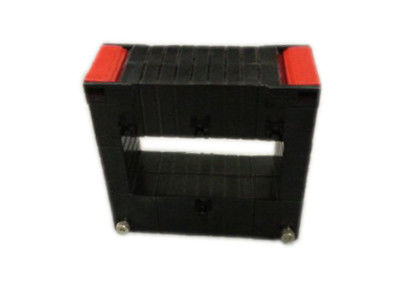

SCTK731Y-Reihen liefern Niederspannungs-magnetischen aufgeteilter Kern CT-Stromwandler und reißen Schließen/Öffnungs-Eigenschaft
Stromwandler des SCTK731Y-Reihenumbaues (Spaltekern) ist besonders entworfen worden, um ihre Installation in den neuen oder bereits vorhandenen Netzarbeiten zu erleichtern. Sie sind installiert möglicherweise, ohne irgendeinen Kabel- oder Hauptleitungsträgerstromkreis zu öffnen. Ein interner Messwiderstand über der Sekundärwicklung des CT liefert einen niedrigen sicheren Spannungsertrag.
Eigenschaften:
Anwendungen:
Elektrischer Parameter
| Nennaufnahme | 0.5A-6000A |
| Messbereich | 10%In-130%In |
| Nennleistung | 0.333V (Wechselstrom) oder 0-5A |
| Verhältnis | ≤± 0,1% |
| Phasenwinkel | ≤ ±5min |
| Isolationswiderstand | DC500V/100MΩmin |
Mechanischer Parameter
| Fall | PC/UL94-V0 |
| Spule | PC |
| Kern | Silikon |
| Interne Struktur | Epoxy-Kleber |
| Bau | Bindung |
| Funktionierender Temp | - 25℃~+75℃ |
| Betriebsfeuchtigkeit | ≤85% |
| Ertrag-Verbindung | Anschluss oder Draht 1.5m UL1015 22AWG |
Schreiben Sie Auswahl
|
P/N |
Nennaufnahme (a) |
Ertrag (a) |
Genauigkeit | Maße (Millimeter) | |||||||||
| A | B | C | D | E | F | G | H | I | |||||
|
SCTK731Y (33) |
100-400A |
1A/5A |
0,2, 0,5, 1,0 |
32 |
32 |
43 |
96 |
96 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (34) |
100-600A |
1A/5A |
0,2, 0,5, 1,0 |
32 |
42 |
43 |
96 |
106 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (35) |
100-1000A |
1A/5A |
0,2, 0,5, 1,0 |
32 |
52 |
43 |
96 |
116 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (36) |
100-1200A |
1A/5A |
0,2, 0,5, 1,0 |
32 |
62 |
43 |
96 |
126 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (38) |
200-1500A |
1A/5A |
0,2, 0,5, 1,0 |
32 |
82 |
43 |
96 |
146 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (310) |
250-2000A |
1A/5A |
0,2, 0,5, 1,0 |
32 |
102 |
43 |
96 |
166 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (312) |
500-2500A |
1A/5A |
0,2, 0,5, 1,0 |
32 |
122 |
43 |
96 |
186 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (313) |
500-3000A |
1A/5A |
0,2, 0,5, 1,0 |
32 |
132 |
43 |
96 |
196 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (44) |
100-600A |
1A/5A |
0,2, 0,5, 1,0 |
42 |
42 |
53 |
106 |
106 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (45) |
100-1000A |
1A/5A |
0,2, 0,5, 1,0 |
42 |
52 |
53 |
106 |
116 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (46) |
100-1200A |
1A/5A |
0,2, 0,5, 1,0 |
42 |
62 |
53 |
106 |
126 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (48) |
200-1500A |
1A/5A |
0,2, 0,5, 1,0 |
42 |
82 |
53 |
106 |
146 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (410) |
250-2000A |
1A/5A |
0,2, 0,5, 1,0 |
42 |
102 |
53 |
106 |
166 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (412) |
500-2500A |
1A/5A |
0,2, 0,5, 1,0 |
42 |
122 |
53 |
106 |
186 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (413) |
500-3000A |
1A/5A |
0,2, 0,5, 1,0 |
42 |
132 |
53 |
106 |
196 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (55) |
100-1000A |
1A/5A |
0,2, 0,5, 1,0 |
52 |
52 |
63 |
116 |
116 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (56) |
100-1200A |
1A/5A |
0,2, 0,5, 1,0 |
52 |
62 |
63 |
116 |
126 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (58) |
200-1500A |
1A/5A |
0,2, 0,5, 1,0 |
52 |
82 |
63 |
116 |
146 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (510) |
250-2000A |
1A/5A |
0,2, 0,5, 1,0 |
52 |
102 |
63 |
116 |
166 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (512) |
500-2500A |
1A/5A |
0,2, 0,5, 1,0 |
52 |
122 |
63 |
116 |
186 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (513) |
500-3000A |
1A/5A |
0,2, 0,5, 1,0 |
52 |
132 |
63 |
116 |
196 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (516) |
1000-5000A |
1A/5A |
0,2, 0,5, 1,0 |
52 |
162 |
63 |
116 |
226 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (66) |
100-1200A |
1A/5A |
0,2, 0,5, 1,0 |
62 |
62 |
73 |
126 |
126 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (68) |
200-1500A |
1A/5A |
0,2, 0,5, 1,0 |
62 |
82 |
73 |
126 |
146 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (610) |
250-2000A |
1A/5A |
0,2, 0,5, 1,0 |
62 |
102 |
73 |
126 |
166 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (612) |
500-2500A |
1A/5A |
0,2, 0,5, 1,0 |
62 |
122 |
73 |
126 |
186 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (613) |
500-3000A |
1A/5A |
0,2, 0,5, 1,0 |
62 |
132 |
73 |
126 |
196 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (616) |
1000-5000A |
1A/5A |
0,2, 0,5, 1,0 |
62 |
162 |
73 |
126 |
226 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (88) |
200-1500A |
1A/5A |
0,2, 0,5, 1,0 |
82 |
82 |
93 |
146 |
146 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (810) |
250-2000A |
1A/5A |
0,2, 0,5, 1,0 |
82 |
102 |
93 |
146 |
166 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (812) |
500-2500A |
1A/5A |
0,2, 0,5, 1,0 |
82 |
122 |
93 |
146 |
186 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (813) |
500-3000A |
1A/5A |
0,2, 0,5, 1,0 |
82 |
132 |
93 |
146 |
196 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (814) |
800-4000A |
1A/5A |
0,2, 0,5, 1,0 |
82 |
142 |
93 |
146 |
206 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (816) |
1000-5000A |
1A/5A |
0,2, 0,5, 1,0 |
82 |
162 |
93 |
146 |
226 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (1010) |
250-4000A |
1A/5A |
0,2, 0,5, 1,0 |
102 |
102 |
113 |
166 |
166 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (1111) |
250-4000A |
1A/5A |
0,2, 0,5, 1,0 |
112 |
112 |
123 |
176 |
176 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (1212) |
500-4000A |
1A/5A |
0,2, 0,5, 1,0 |
122 |
122 |
133 |
186 |
186 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (1313) |
500-5000A |
1A/5A |
0,2, 0,5, 1,0 |
132 |
132 |
143 |
196 |
196 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (1515) |
600-5000A |
1A/5A |
0,2, 0,5, 1,0 |
152 |
152 |
163 |
216 |
216 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (1616) |
800-5000A |
1A/5A |
0,2, 0,5, 1,0 |
162 |
162 |
173 |
226 |
226 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (1818) |
1000-5000A |
1A/5A |
0,2, 0,5, 1,0 |
182 |
182 |
193 |
246 |
246 |
32 |
32 |
50 |
32 |
|
|
SCTK731Y (2020) |
1000-6000A |
1A/5A |
0,2, 0,5, 1,0 |
202 |
202 |
213 |
266 |
266 |
32 |
32 |
32 |
50 |
|
Anmerkungen: Produktbeschreibungen können besonders angefertigt werden
